插套拔出力规/地端吊重规/英规插头插座量规、互换性通止规

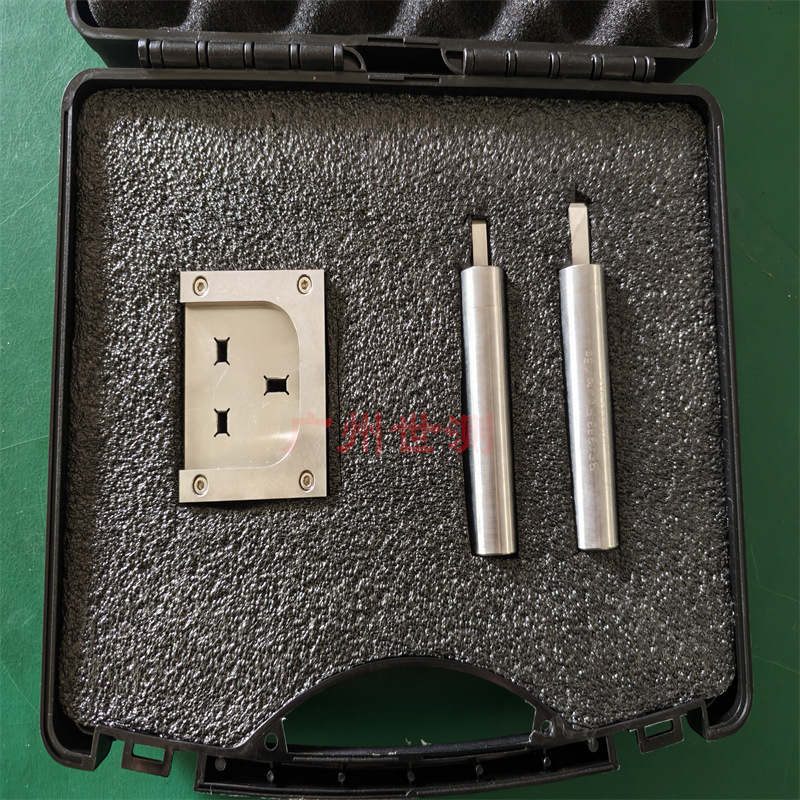

BS1363-1 Figure5 Gauge for plug pins
BS1363-2 Figure16 Withdrawal pull gauges for effectiveness of contactW
量规名称:英规插头插座量规、互换性通止规
量规规格:BS1363-1 Figure5 Gauge for plug pins
量规参数:250V,13A
量规型号:SC-B3F5,SC-B3F16
量规标准:符合BS1363-1 Figure5 BS1363-2 Figure16要求
英式BS量规较多,请联系我们,获取清单和详细资料。
![灯头量规 产品细节](https://cbu01.alicdn.com/img/ibank/O1CN013c0qvU27o8ze6m9NO_!!2958987843-0-cib.jpg)
序号 | 世测量规名称 | 图号/标准 | 世测型号 | 件数 |
1 | Test Pin测试探针 | BS1363-1,-2 Figure1 | SC-B3F1 | 1 |
2 | 弹性外壳的机械强度试验装置 | BS1363-1,-2 Figure2a.2b | SC-B3F2a SC-B3F2b | 2 |
3 | Gauge for plug pins 插头互换性通规 | BS1363-1 Figure5 | SC-B3F5 | 1 |
4 | 插座最大通规 | BS1363-1,-2 Figure11 | SC-B311D | 1 |
5 | 插座最小通规 | BS1363-1,-2 Figure11 | SC-B3F11X | 1 |
6 | 接触试验规 | BS1363-2 Figure12 | SC-B3F12 | 1 |
7 | 非接触试验规 | BS1363-2 Figure14 | SC-B3F14 | 1 |
8 | 横向应力量规 (插套扭矩规) | BS1363-2 Figure15 | SC-B3F15 | 1 |
9 | 插套拔出力规(地端吊重规) | BS1363-2- Figure16a | SC-B3F16E | 1 |
10 | 插套拔出力规(LN端吊重规) | BS1363-2- Figure16b | SC-B3F16L | 1 |
11 | 温升试验的试验装置与仿真面板 | BS1363-1 Figure17a/b | SC-B3F17a SC-B3F17b | 1 |
12 | 不锈钢制实心保险丝 | BS1363-1,-2 Figure 19 | SC-B3F19 | 1 |
13 | 压力试验装置 | BS1363-1,-2 Figure 23 | SC-B3F23 | 1 |
14 | 校正管用的校正夹具 | BS1363-1,-2 Figure 29 | SC-B3F29 | 1 |
15 | 温升量规 | BS1363-2 Figure30 | SC-B3F30 | 1 |
![灯头量规 产品优势](https://cbu01.alicdn.com/img/ibank/O1CN01bZkC3z27o8ze6mt6X_!!2958987843-0-cib.jpg)
1、标准:完全符合满足标准要求,及能通过第三方计量、校准、检测;
2、加工:数控CNC设备精密加工,品质可控、交期更短、服务更到位;
3、材质:日本、德国、瑞士进口工业级模具钢及不锈钢等,具有高镜面、高硬度、变形小、耐磨损、抗腐蚀、耐生锈等优点;
4、质量:出厂前经过二次元、投影仪、数显千分尺、卡尺等测量,质量把控严格;世测仪器品质可靠值得信赖。
5、公差:平行度、垂直度和对称度等形位公差符合GB/T 1184-1996中规定公差H级;
6、标识:所有型号和图号均用激光刻字打标,美观清晰,耐用方便;
![灯头量规 产品参数](https://cbu01.alicdn.com/img/ibank/O1CN01lOM6mg27o8zcUXBTv_!!2958987843-0-cib.jpg)
技术标准:
BS 1363-1: 13 A plugs, socket-outlets, adaptors and connection units. –Part1:Part 1: Specification for rewirable and non-rewirable 13 A fused plugs
BS 1363-2: 13 A plugs, socket-outlets, adaptors and connection units. –Part2:Specification for 13 A switched and unswitched socket-outlets
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01gvKiSL27o90T6ZICy_!!2958987843-0-cib.jpg)
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01o56Qby27o90WiQCRB_!!2958987843-0-cib.jpg)
![灯头量规 应用范围](https://cbu01.alicdn.com/img/ibank/O1CN01Mb6wwC27o8zk6dTU7_!!2958987843-0-cib.jpg)
应用与目的:
借助量规检验相对应之插头和插座的尺寸是否合格。
![灯头量规 灯头量规]()
![灯头量规 权威资质](https://cbu01.alicdn.com/img/ibank/O1CN01TuMpzz27o8zdql6xa_!!2958987843-0-cib.jpg)
1、所有产品由具有CNAS资格(国家认可实验室资质)的国家检测实验室进行计量检测校准,并发给权威的计量证书。
2、量规严格按照国际标准要求一件一件生产制作,匠心打造。
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01vkaALM1nNlrwBBOrh_!!6000000005078-0-cib.jpg)
![灯头量规 产品实拍](https://cbu01.alicdn.com/img/ibank/O1CN01cMoz1m27o8zYxaw6g_!!2958987843-0-cib.jpg)
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01banF8G27o9Il052ka_!!2958987843-0-cib.jpg?__r__=1715648658522)
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01sOHeOr27o90Yq8Mnl_!!2958987843-0-cib.jpg)
![灯头量规 BS1363-1-Fig5英标插头插销量规](https://cbu01.alicdn.com/img/ibank/O1CN011dXRPJ27o94CsdBCD_!!2958987843-0-cib.jpg)
![灯头量规 公司介绍](https://cbu01.alicdn.com/img/ibank/O1CN01UMVRrL27o8zgWZfTc_!!2958987843-0-cib.jpg)
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01AbNOBy27o90Pdkkco_!!2958987843-0-cib.jpg)
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01YsnLgH27o90B24dKd_!!2958987843-0-cib.jpg)
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01fj2xjE27o90PdlUMW_!!2958987843-0-cib.jpg)
![灯头量规 undefined](https://cbu01.alicdn.com/img/ibank/O1CN01SoGTJB27o90Fkuzau_!!2958987843-0-cib.jpg)
英式BS量规较多,请联系我们,获取清单和详细资料。
